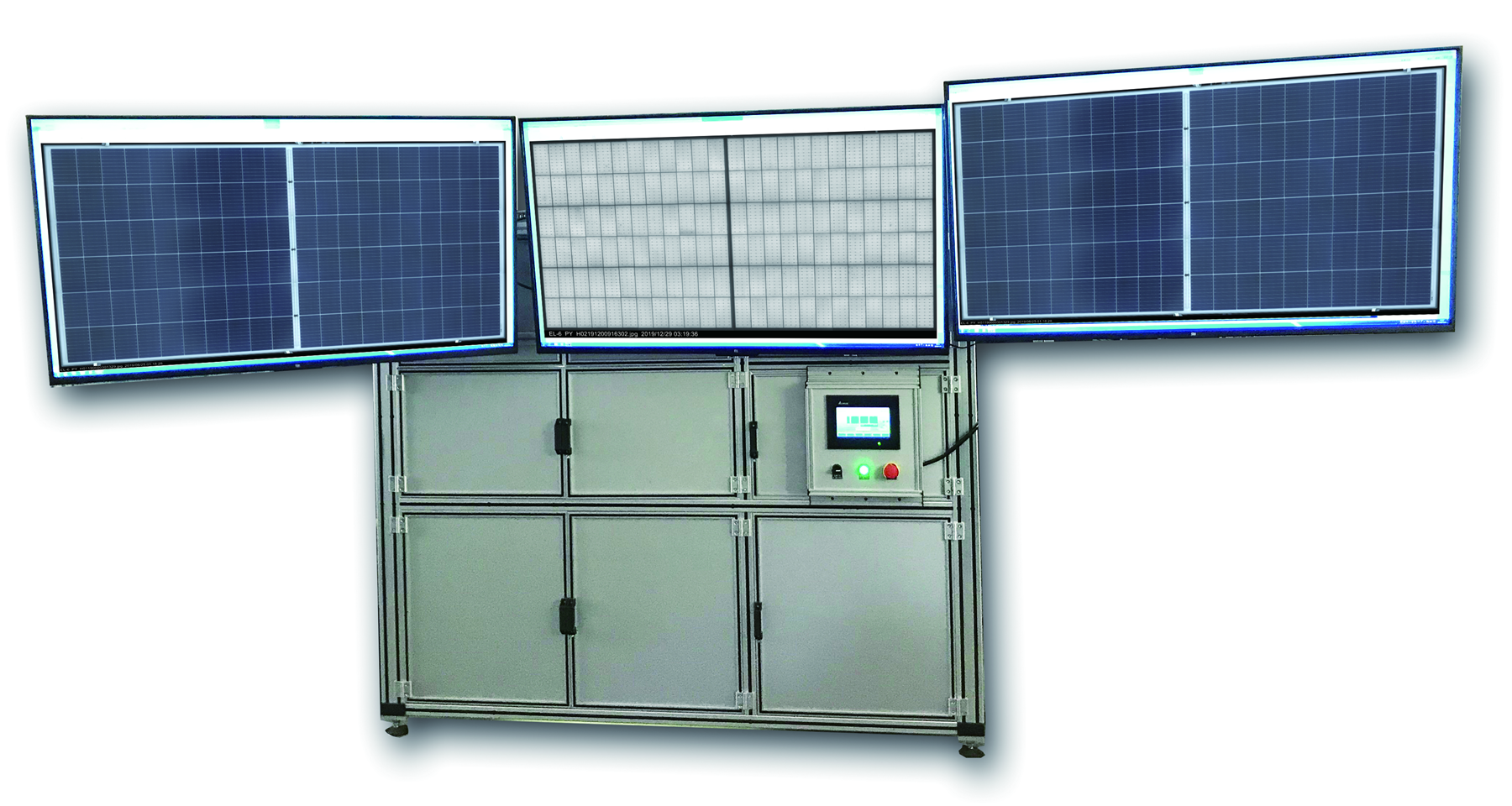

Solar Panel EBV Scanner AI system

Model: MPS-EBV-AS

Automation Mode High Precision < 20s Cycle Time
EL/BVI Scanner

Advanced Features

Advanced Camera System

  • • Quadruple NIR cameras (EL)
  • • Quadruple visual cameras (VI)
  • • High-resolution imaging

Testing Applications

  • • Pre-lamination testing
  • • Post-lamination testing

Technical Specifications

Column 1 Column 2 Column 3
Equipment NameInline Solar Panel EL/BVI scanner
Equipment ModelMPS-EBV-AS
Target ObjectMonocrystal/polycrystalline silicon solar panels
Panel SizeLength 1600-2520mm, width 900-1410mm
Transfer modeSolar panel transported long edge forward
Detectable Defects (EL)Micro-crack, Cold soldering, Black spot, etc.
Detectable Defects (SVI & RVI)Abnormal cell gap, Ribbon misalignment, etc.
Conveyor Height950mm(+/-30mm)
Cycle Time≤15s
Equipment Dimension2900mm*2800mm*1800mm
Power Demand220V/50HZ
False Negative Rate≤0.05%

Warranty & Support

Warranty Coverage

  • 12 months warranty period
  • Technical support via phone & email
  • Express parts support from Shanghai

Training Support

  • Training for 2-3 engineers
  • Hardware/software setup assistance
  • Maintenance guidance
